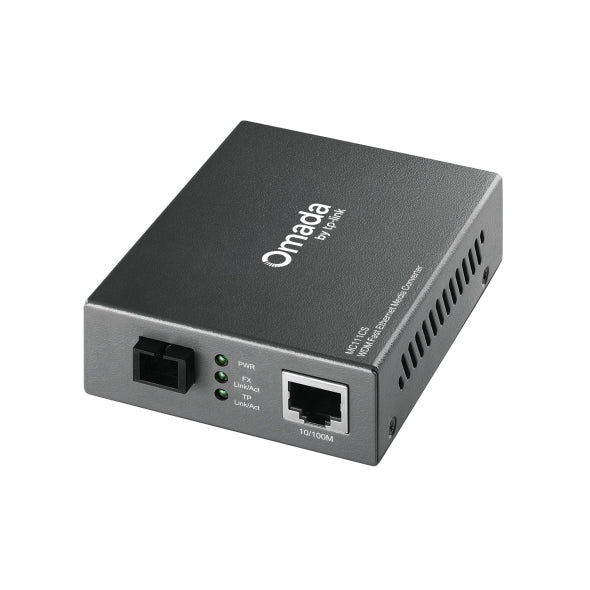

Cost-Effective Long-Range Fiber Connectivity The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM (Wave Division Multiplexing) technology, the MC111CS takes only one fiber cable to transmit and receive data, which saves half of the cabling cost for you.

Key Features:

• WDM Technology: Transmit and receive data on a single fiber strand using different wavelengths (TX: 1550nm / RX: 1310nm).

• Long-Distance Transmission: Extends fiber distance up to 20 km (12.4 miles) over single-mode fiber.

• Fast Ethernet Performance: Equipped with 1× 10/100Mbps Auto-Negotiation RJ45 port and 1× 100Mbps SC fiber port.

• Link Fault Pass Through (LFP): Minimizes the loss caused by link failure by ensuring constant monitoring of the connection.

• Half/Full Duplex: Support for half-duplex and full-duplex transfer modes for the FX port.

• Easy Monitoring: Clearly visible LED indicators provide status to monitor network activity easily.

• External Power Supply: Includes a dedicated power adapter for stable, standalone operation.

What’s in the Box:

• MC111CS Media Converter

• Power Adapter

• Installation Guide (Note: Must be used with MC112CS for proper WDM pairing)
