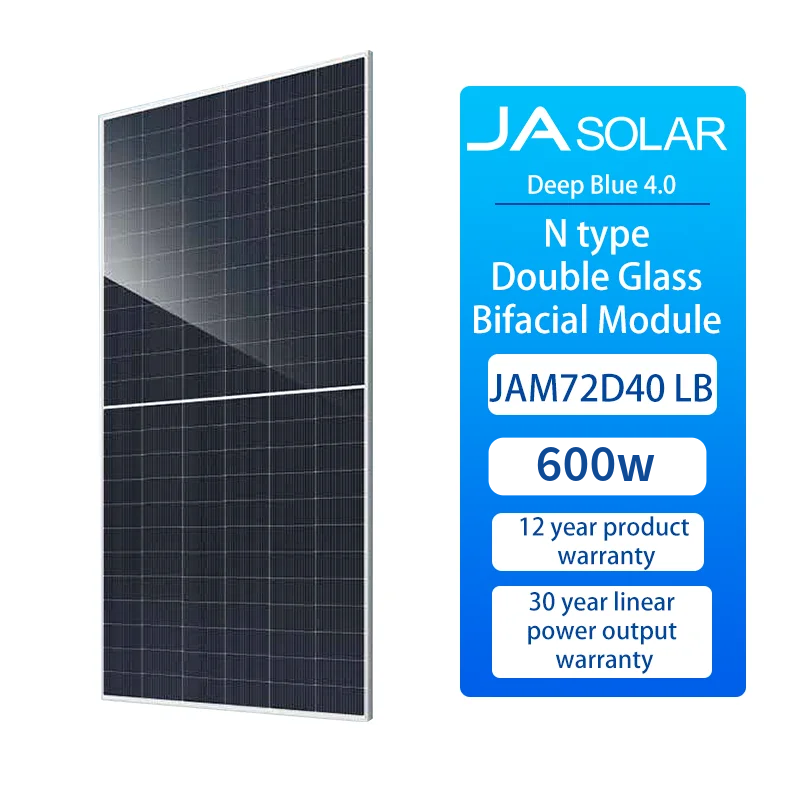

High-Performance n-Type Bifacial Double Glass Module

Experience next-generation solar efficiency with the JA Solar Deep Blue 4.0 Pro series. Designed for commercial and utility-scale projects, the JAM72D40-LB utilizes advanced n-type TOPCon technology to deliver higher power output, better temperature stability, and enhanced durability through its double-glass construction.

Key Features:

• Advanced n-Type TOPCon Technology: Powered by Bycium+ cells with 16 busbars (SMBB), this module achieves outstanding conversion efficiency (up to 22.9%) and superior performance even in low-light conditions.

• Bifacial Energy Gain: The double-glass design allows the rear side to capture reflected sunlight, significantly increasing total energy yield compared to traditional monofacial panels.

• Built for Durability: Featuring 2.0mm heat-strengthened glass on both sides, these modules are engineered to withstand harsh environments, rated for 5400 Pa snow loads and 2400 Pa wind loads.

• Exceptional Low-Light Response: Optimized cell architecture ensures consistent power generation during early morning, late evening, or cloudy days.

• Industry-Leading Warranty: Rest easy with a 12-year product material and workmanship warranty and a 30-year linear power output warranty, ensuring at least 87.4% performance after three decades.

• Lower LCOE: With lower LID (Light Induced Degradation) and better temperature coefficients (-0.29%/°C), this panel maximizes your return on investment by producing more kilowatt-hours over its lifespan.

Technical Specifications:

• Power Range: 580W – 605W+ (Model dependent)

• Efficiency: Up to 22.9%

• Dimensions: 2333 ± 2mm x 1134 ± 2mm x 30mm

• Weight: 32.5 kg

• Cell Type: Mono n-type (144 half-cells)

• Junction Box: IP68 rated with 3 bypass diodes

• Connectors: MC4-EVO2 compatible
