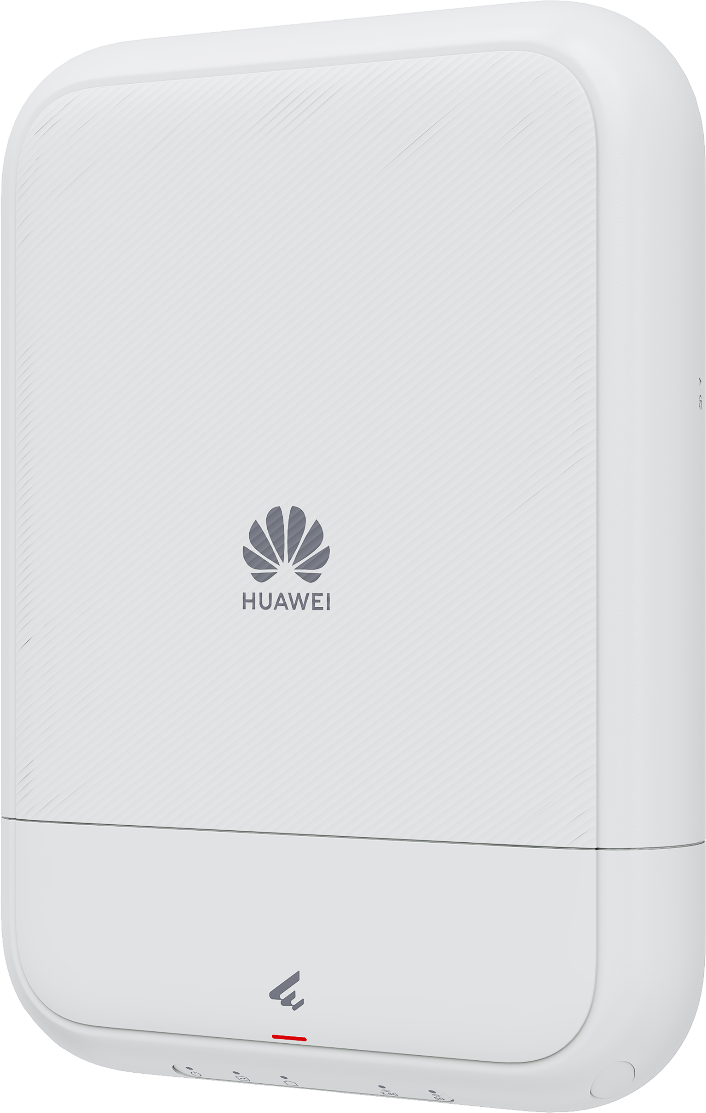

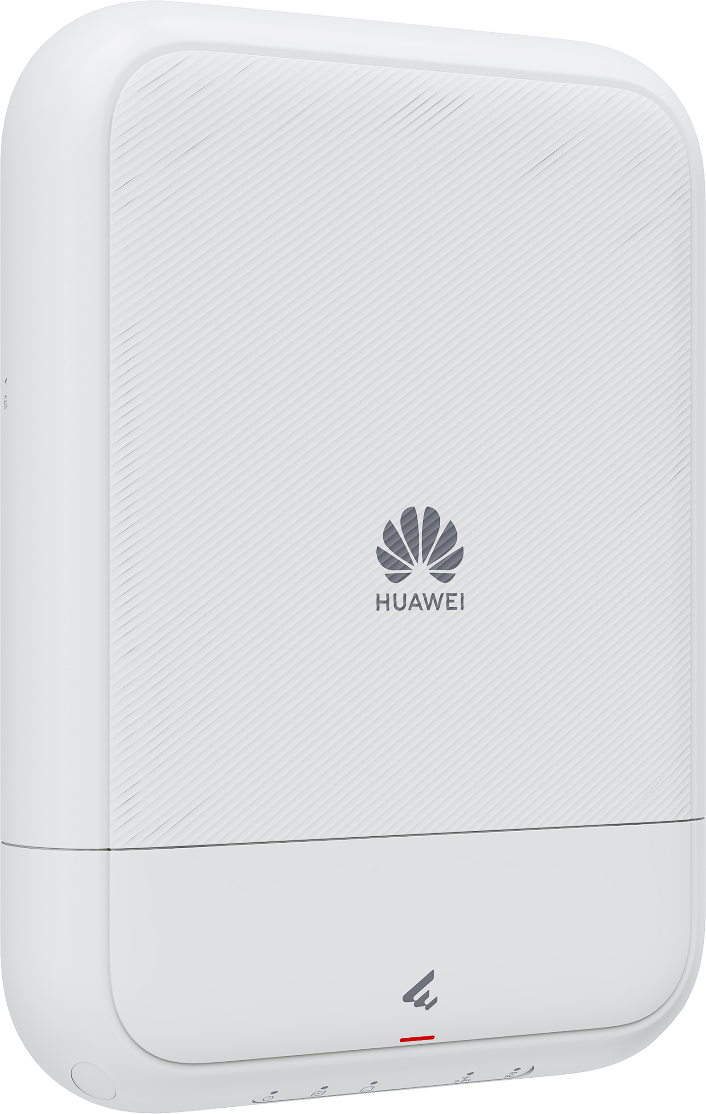

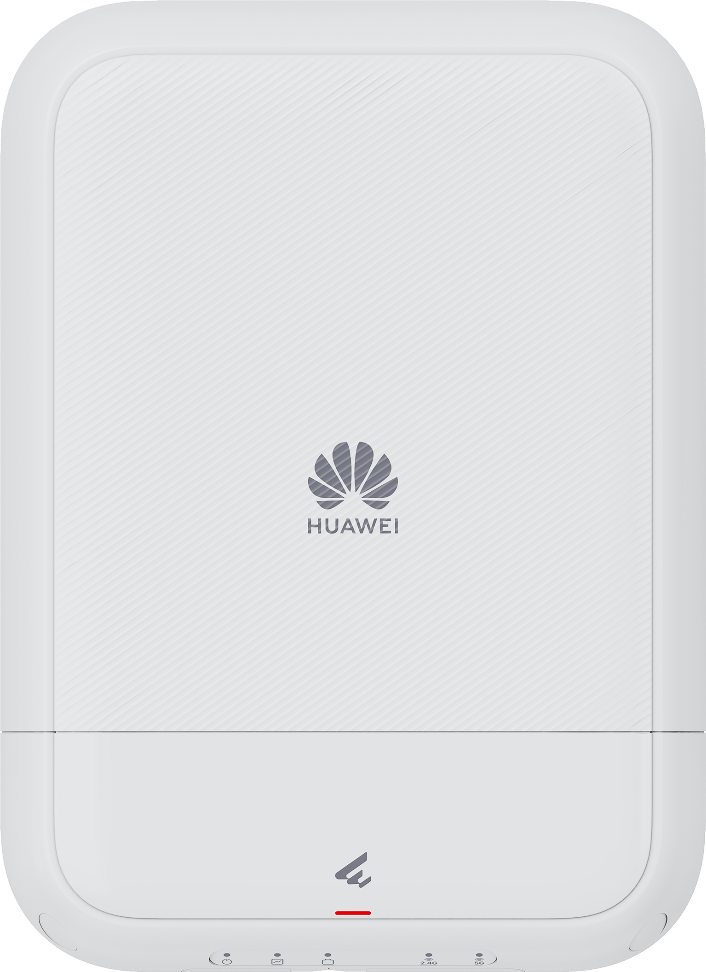

Next-Generation Wi-Fi 7 Performance for Outdoor Environments.The Huawei eKitEngine AP771 is a cutting-edge outdoor access point that leverages the latest Wi-Fi 7 (802.11be) standard to deliver fiber-like wireless speeds. With a combined throughput of 3.57 Gbps and built-in omnidirectional antennas, it provides reliable, high-speed connectivity across a 130-meter radius, making it the ideal solution for high-density outdoor venues.

Key Features:

• Ultra-Fast Wi-Fi 7 Speeds: Delivers up to 3.57 Gbps total bandwidth (2.88 Gbps on 5 GHz and 0.69 Gbps on 2.4 GHz) using advanced 4096-QAM and Multi-Link Operation (MLO).

• 2.5GE High-Speed Uplink: Equipped with a 2.5 Gbps Ethernet port to eliminate wired bottlenecks and fully support Wi-Fi 7 wireless speeds.

• Rugged Outdoor Durability: IP65-rated waterproof and dustproof casing with an extended operating temperature range of –30°C to +60°C.

• Superior Surge Protection: Built-in 6 kA surge protection for Ethernet ports ensures hardware safety during volatile weather.

• Omnidirectional Coverage: Integrated antennas provide 360-degree coverage with an optimal experience radius of up to 130 meters.

• Flexible Management: Supports Fit, Fat, and Cloud management modes, allowing for easy deployment via the Huawei eKit app or a central controller.

• Compact & Lightweight: Innovative "invisible pole" antenna architecture results in a sleek, lightweight design (1.14 kg) for easy installation.

What’s in the Box:

• eKitEngine AP771 Access Point

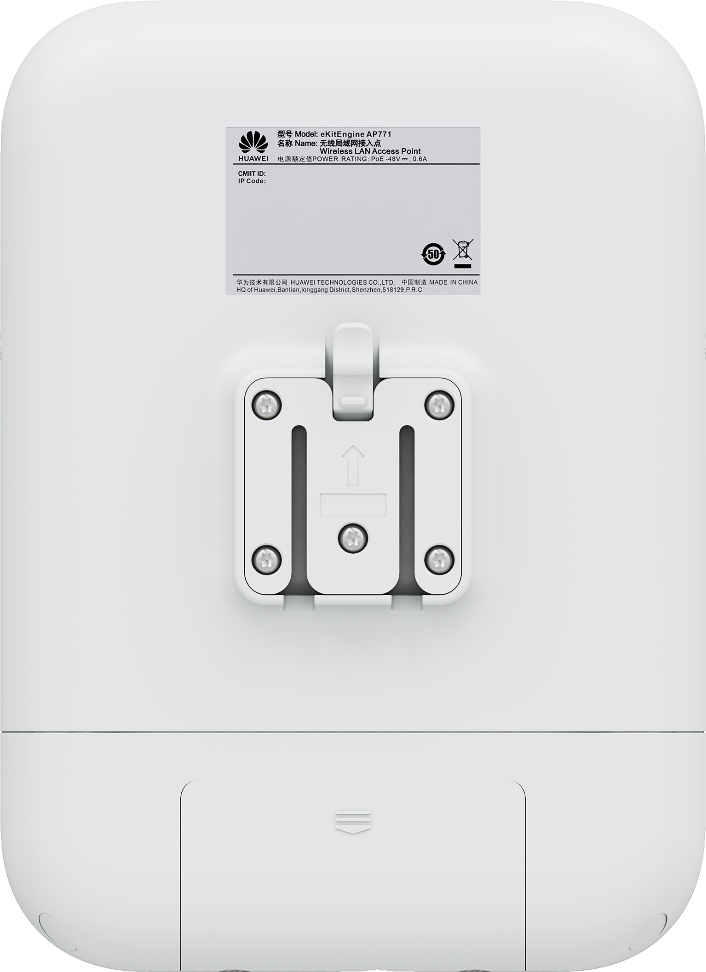

• Mounting Bracket (Rail/Pole/Wall)

• Waterproof Connector Kit

• Grounding Cable

• Quick Start Guide
