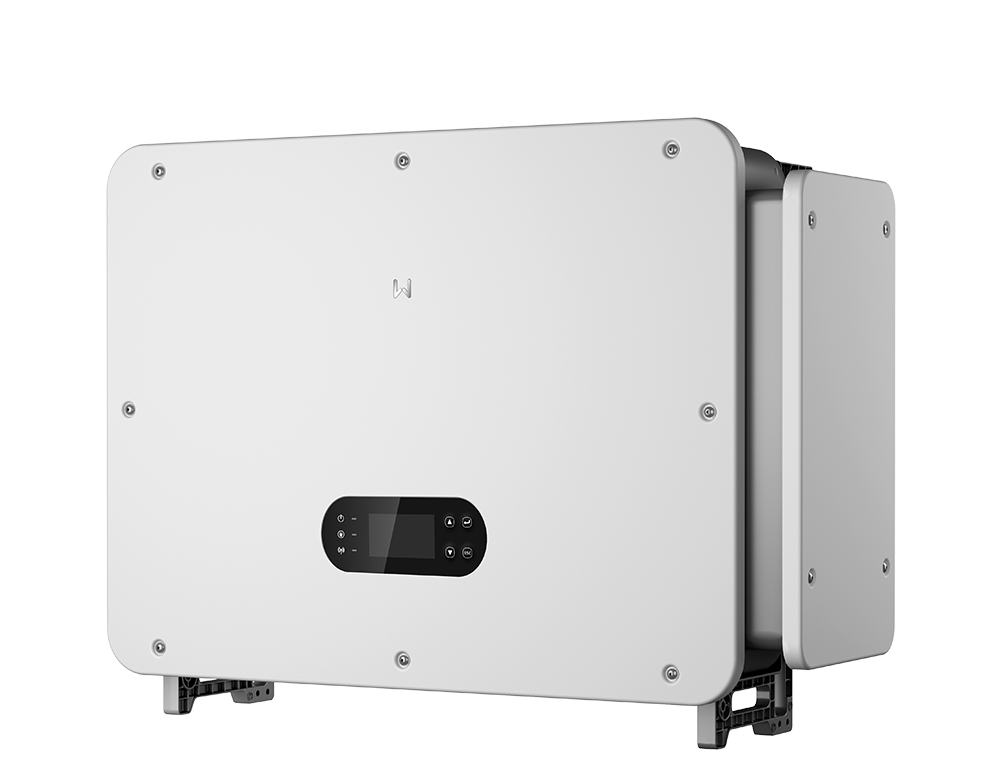

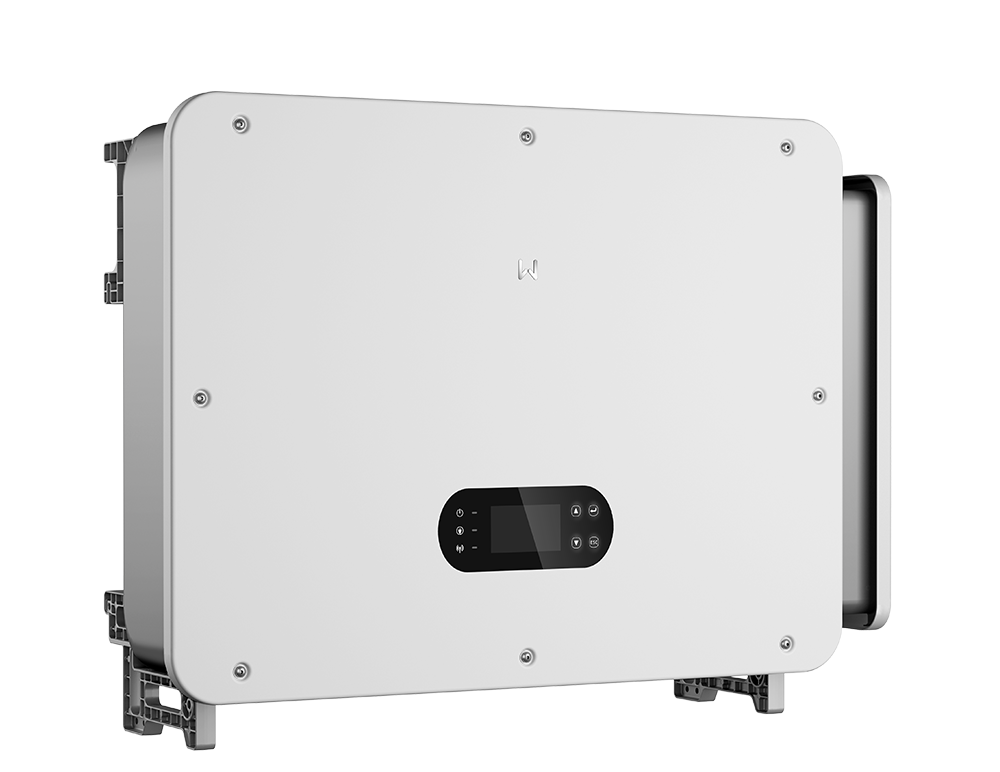

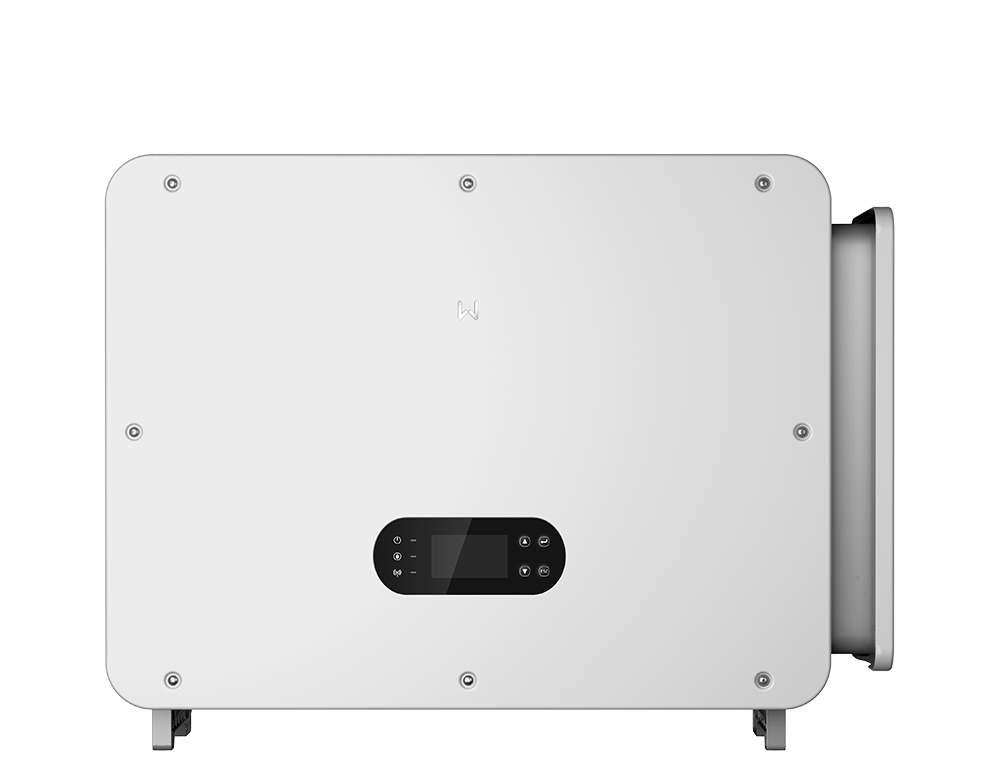

Scale up your commercial solar-plus-storage energy strategy. The GoodWe GW100K-ET-G10 (ET 100kW Series) is a high-capacity 100kW three-phase high-voltage hybrid solar inverter engineered specifically for large-scale commercial and industrial (C&I) facilities, utility-scale applications, and microgrids.

Built to handle demanding energy profiles, this inverter seamlessly manages high PV input, large-capacity battery storage (such as the GoodWe Lynx C series), and backup power demands while delivering advanced peak-shaving and time-of-use (TOU) load control.

Key Features:

• 100kW Nominal AC Output: Delivers enterprise-level power for manufacturing sites, commercial hubs, and high-load facilities.
• 150% PV Input Oversizing: Supports up to 150kW of total solar panel capacity to maximize generation during shoulder hours and low-irradiance conditions.
• Multiple Independent MPPT Trackers: High MPPT density ensures maximum energy yield across large, multi-faceted commercial rooftops or ground mounts.
• High-Voltage Battery Integration: Designed for 500V–900V high-voltage commercial battery systems with high charge/discharge current capacity.
• Peak Shaving & TOU Optimization: Built-in smart energy management algorithm automatically reduces peak demand charges and optimizes grid usage.
• Grid-Support & Unbalanced Output: Capable of handling phase imbalances and providing reactive power control for grid stability.
• Heavy-Duty Commercial Reliability: Enclosed in an IP66-rated housing with smart forced-air cooling for continuous operating stability in harsh environments.

Technical Specifications:

• Model: GW100K-ET-G10
• Max. Recommended PV Input Power: 150,000 W
• Max. PV Input Voltage: 1,100 V
• MPPT Operating Voltage Range: 200 V – 1,000 V
• Nominal AC Output Power: 100,000 W / 100,000 VA
• Nominal AC Grid Voltage: 380 V / 400 V / 415 V (3-Phase / 3L+N+PE or 3L+PE)
• Battery Voltage Range: High-Voltage 500 V – 900 V
• Max. Charge / Discharge Current: 100 A / 100 A (System/Model Dependent)
• Ingress Protection Rating: IP66
• Cooling: Smart Forced Air Cooling
