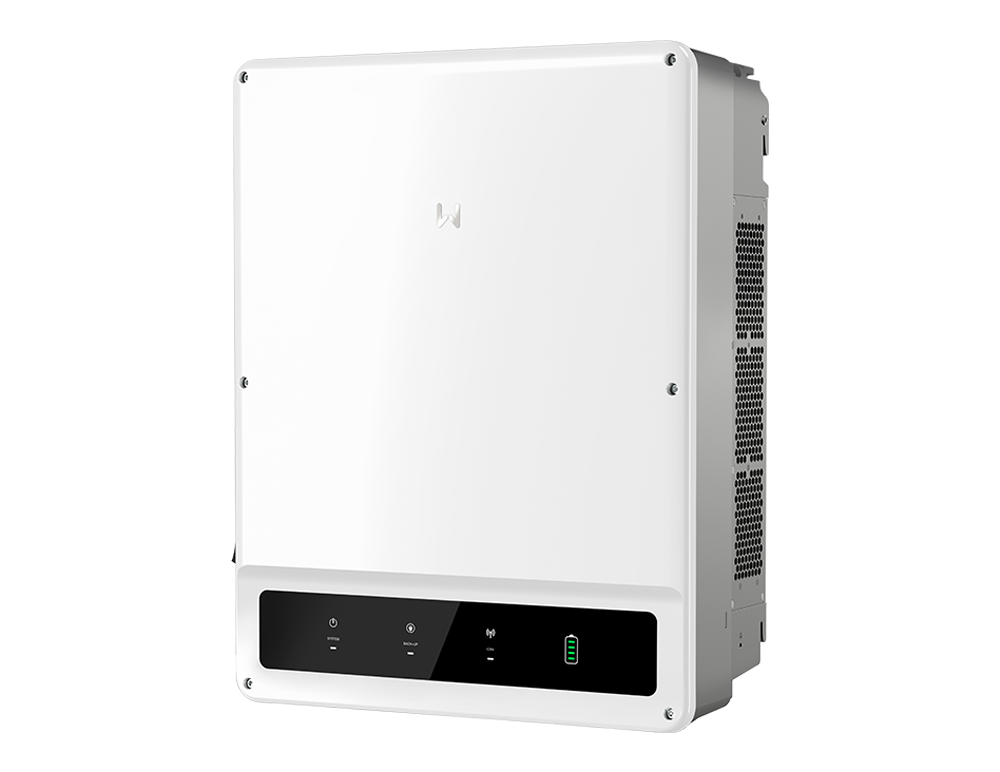

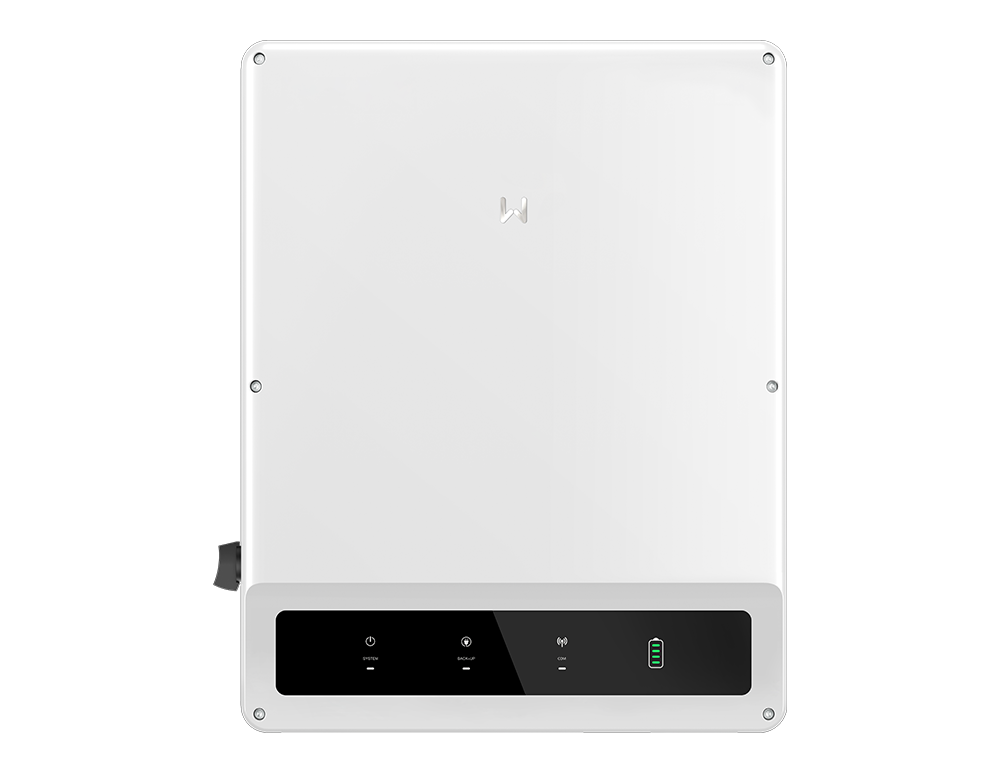

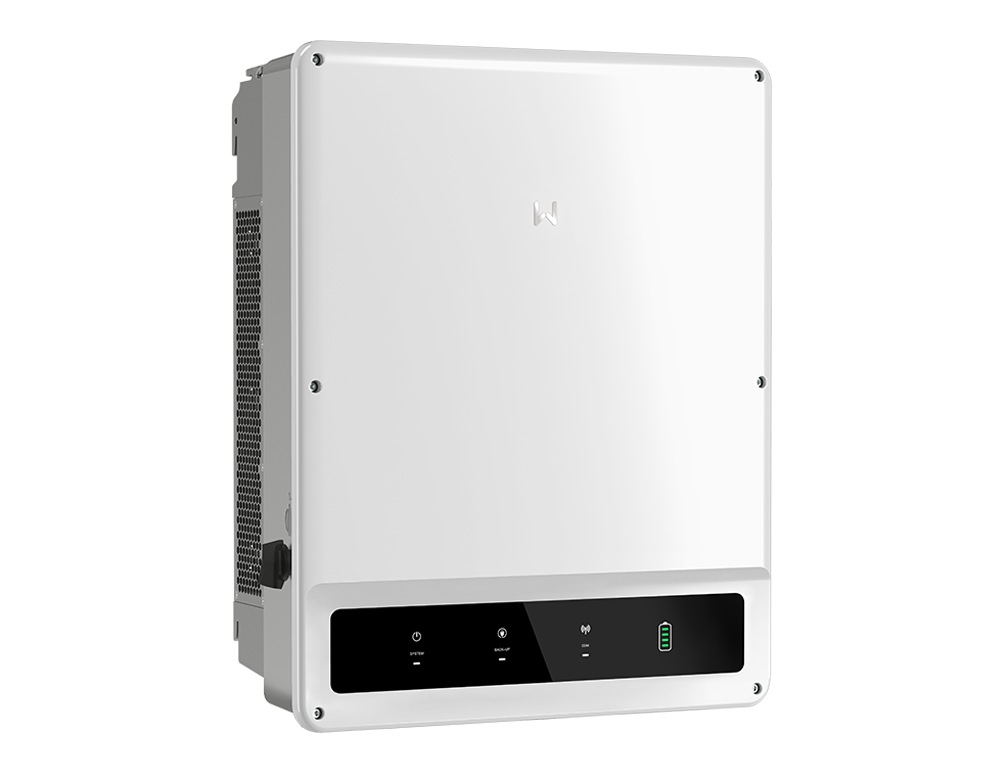

Unlock commercial-grade energy storage and peak performance. The GoodWe GW30K-ET-10 (ET 15–50kW Series) is a robust 30kW three-phase high-voltage hybrid solar inverter built specifically for commercial and industrial (C&I) applications looking to maximize self-consumption, lower operational overhead, and secure continuous backup power.

Engineered to integrate seamlessly with high-voltage battery storage systems (such as the GoodWe Lynx C series), this unit features 3 independent MPPT trackers, up to 150% PV oversizing capability, and an intelligent peak-shaving energy management system.

Key Features:

• 30kW Continuous AC Power: Delivers high-efficiency power conversion for mid-scale commercial rooftops and operations.
• 150% PV Oversizing: Supports up to 45kW of total solar input capacity to maximize energy yield throughout the day.
• 3 Independent MPPT Trackers: Designed to optimize energy harvest across complex roof arrays, partial shading, and multi-orientation layouts.
• High-Voltage Battery Compatibility: Works with 200V–800V high-voltage Li-ion batteries, featuring up to 50A continuous charge and discharge current.
• 110% Unbalanced Load Support: Handles uneven single-phase load distribution efficiently in both grid-tied and backup operating modes.
• Peak Shaving & Smart Energy Management: Advanced scheduling for time-of-use (TOU) optimization and dynamic demand management.
• Heavy-Duty Weatherproofing: IP66-rated enclosure designed for demanding indoor and outdoor commercial environments.

Technical Specifications:

• Model: GW30K-ET-10
• Max. PV Input Power: 45,000 W
• Max. Input Voltage: 1,000 V
• MPPT Operating Voltage Range: 165 V – 850 V
• Number of MPPT Trackers: 3
• Nominal AC Output Power: 30,000 W / 30,000 VA
• Max. AC Current Output to Grid: 43.5 A (@ 400V) / 45.6 A (@ 380V)
• Battery Voltage Range: High-Voltage 200 V – 800 V (500 V Nominal)
• Max. Battery Charge / Discharge Current: 50 A / 50 A
• Ingress Protection Rating: IP66
• Dimensions & Weight: 520 × 660 × 220 mm | 58 kg
