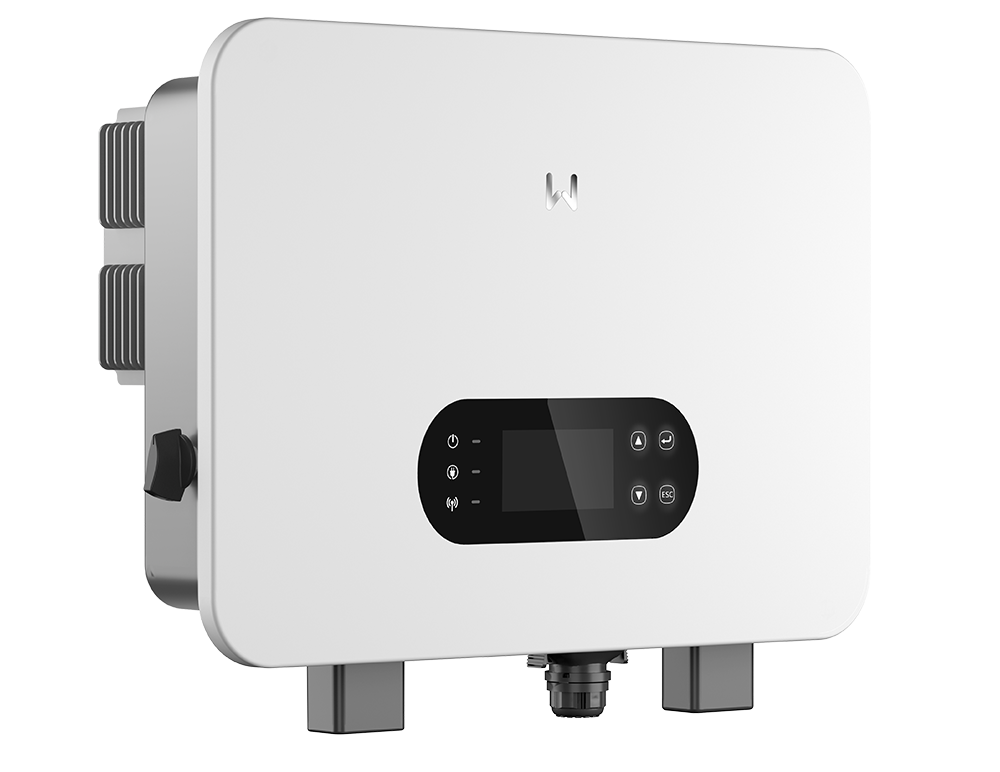

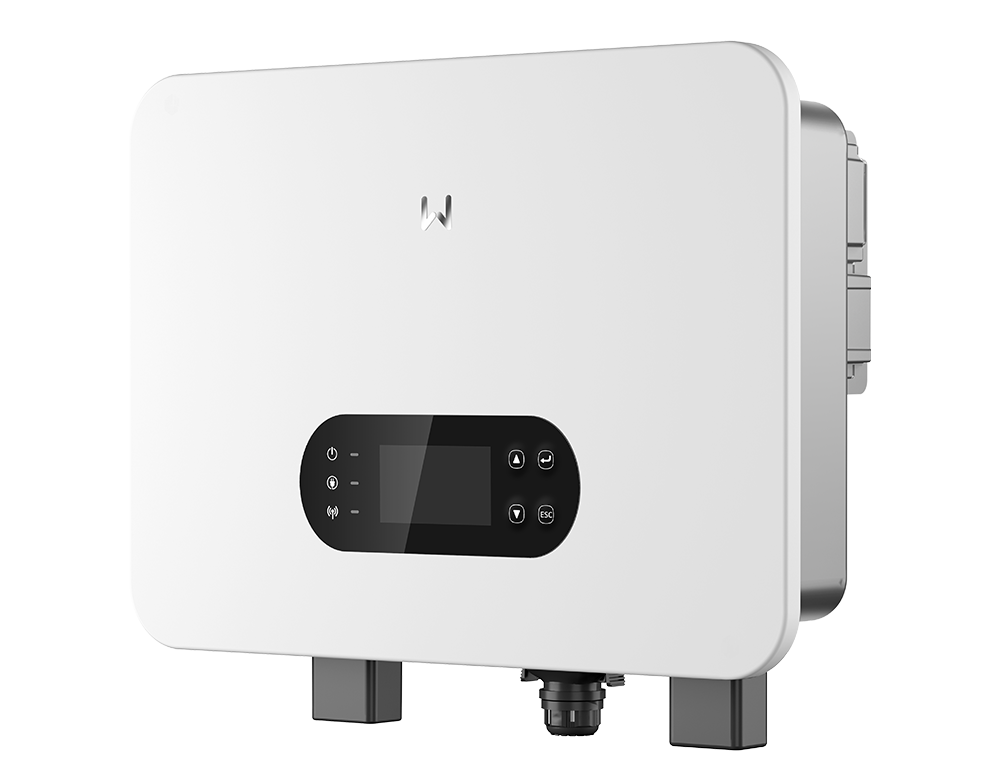

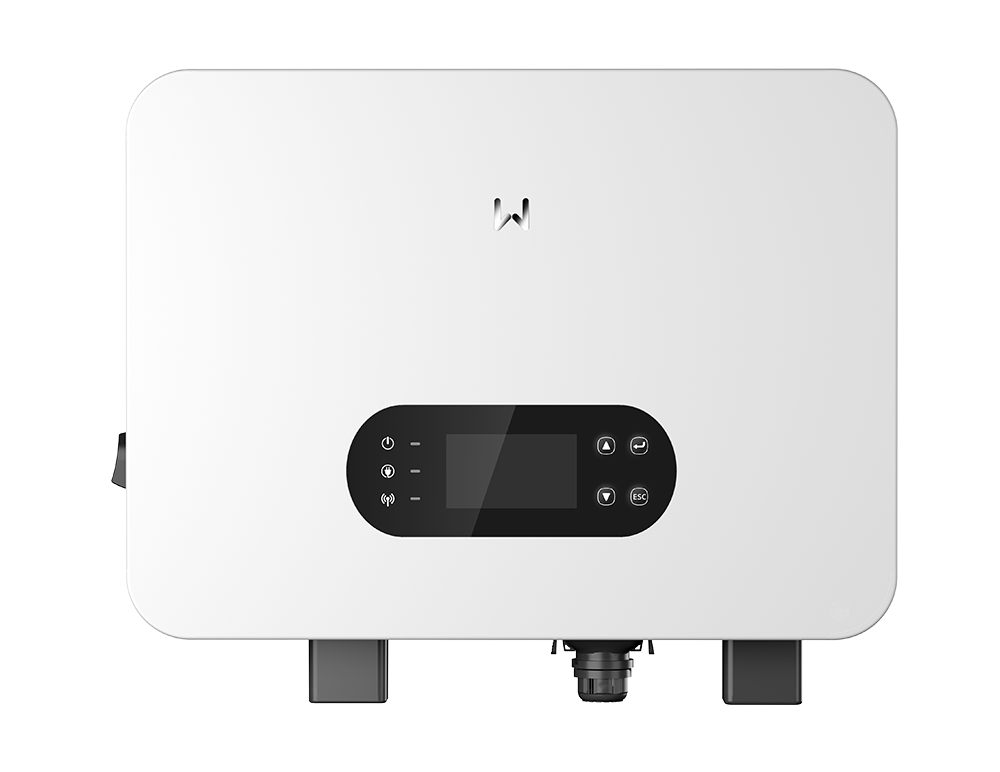

Power your home with smart energy independence. The GoodWe GW6000-ES-C10 (ES Uniq Series) is a high-performance 6kW single-phase hybrid solar inverter engineered to maximize self-consumption, deliver reliable emergency backup power, and reduce grid dependence [1.1.2].

Designed for 48V low-voltage battery systems, it supports up to 200% PV oversizing, dual MPPT tracking, and ultra-fast UPS switching (<4ms) during power outages [1.1.2].

Key Features:

• 6kW Nominal AC Output: Provides up to 6,000W of continuous AC output power for residential loads [1.1.2].
• 200% PV Oversizing: Accepts up to 12kW of solar panel capacity to maximize generation during low-light conditions [1.1.2].
• Dual MPPT Trackers: Maximizes power output across multiple roof angles and shading conditions [1.1.2].
• 140A Charge & Discharge Current: Rapid charging and discharging capabilities for 48V low-voltage lithium and lead-acid batteries [1.1.2].
• Ultra-Fast UPS Backup: Seamless backup switching in under 4ms to keep critical household appliances running continuously [1.1.2].
• Weatherproof & Reliable: Premium IP66 rating for outdoor or indoor installation, equipped with quiet natural convection cooling [1.1.2].
• Smart App Monitoring: Full system control and monitoring through the GoodWe SEMS platform via Wi-Fi/LAN/Bluetooth [1.1.2].

Technical Specifications:

• Model: GW6000-ES-C10 [1.1.2]
• Max. Recommended PV Input Power: 12.0 kW [1.1.2]
• Max. Input Voltage: 600 V [1.1.2]
• MPPT Operating Voltage Range: 60 V – 550 V [1.1.2]
• Nominal AC Power: 6,000 W [1.1.2]
• Nominal Battery Voltage: 48 V (Range: 40 V – 60 V) [1.1.2]
• Max. Continuous Charge / Discharge Current: 140 A / 140 A [1.1.2]
• Protection Rating: IP66 [1.1.2]
• Cooling: Natural Convection [1.1.2]
