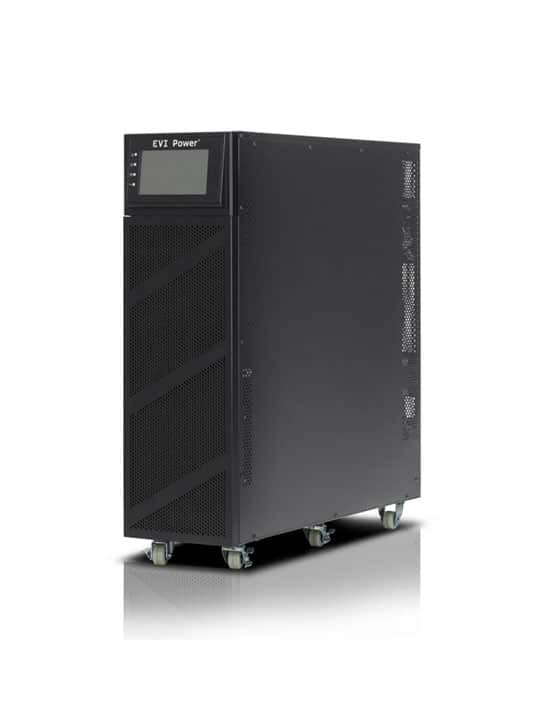

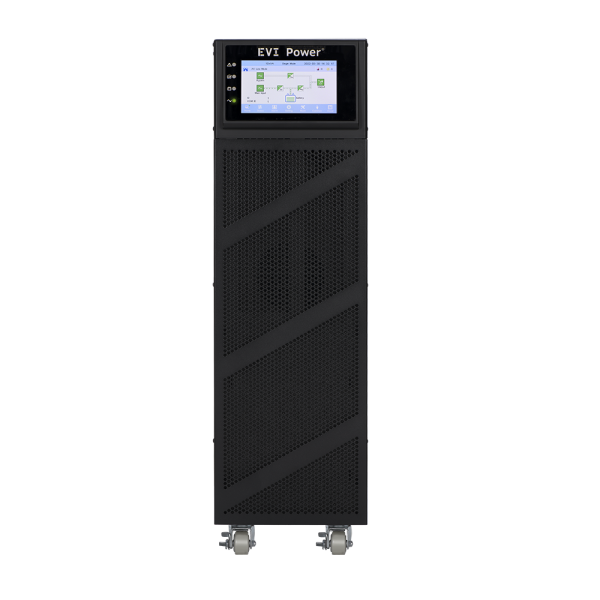

EVI Power 20kVA Online Tower UPS (EP-UPS20000Y33OT)

EVI Power 20kVA / 18kW Online Tower UPS – 3:3 Phase (EP-UPS20000Y33OT)

The EVI Power EP-UPS20000Y33OT is a professional-grade, high-capacity Online Double-Conversion UPS engineered for mission-critical industrial, data center, and enterprise applications. Featuring 3-phase input and output (3:3) and advanced DSP control, it delivers stable, clean power with zero transfer time.

Technical Specifications:

• Model: EP-UPS20000Y33OT
• Capacity: 20kVA / 18kW (0.9 Power Factor)
• Topology: True Online Double-Conversion
• Phase Configuration: 3-Phase Input / 3-Phase Output (3:3)
• Transfer Time: 0ms
• Input Voltage Range: 208–478 VAC
• Battery Configuration: Built-in 40 x 9Ah batteries
• Parallel Capability: Supports N+X parallel redundancy (up to 4 units)
• Display: 7-inch color touch-screen LCD
• Connectivity: USB, RS232, RS485, Parallel Port, Dry Contact
• Warranty: 2-year manufacturer warranty (1 year on battery components)

Ideal For: Enterprise server rooms, data centers, industrial manufacturing, telecommunications infrastructure, and medical equipment requiring continuous, isolated power protection.
