EVI Power 10kVA / 9kW Online Tower UPS – 3:3 Phase (EP-UPS10000Y33OT)

The EVI Power EP-UPS10000Y33OT is a high-capacity, industrial-grade Online Double-Conversion UPS engineered for mission-critical IT infrastructure, data centers, and enterprise applications. Utilizing advanced DSP control and 3-phase input/output, it ensures stable, pure sine wave power with zero transfer time during outages.

Key Technical Specifications:

• Model: EP-UPS10000Y33OT
• Capacity: 10kVA / 9kW (0.9 Power Factor)
• Topology: True Online Double-Conversion
• Phase Configuration: 3-Phase Input / 3-Phase Output (3:3)
• Transfer Time: 0ms
• Battery Configuration: 20 x 9Ah high-capacity internal batteries
• Parallel Capability: Supports N+X parallel redundancy (up to 4 units)

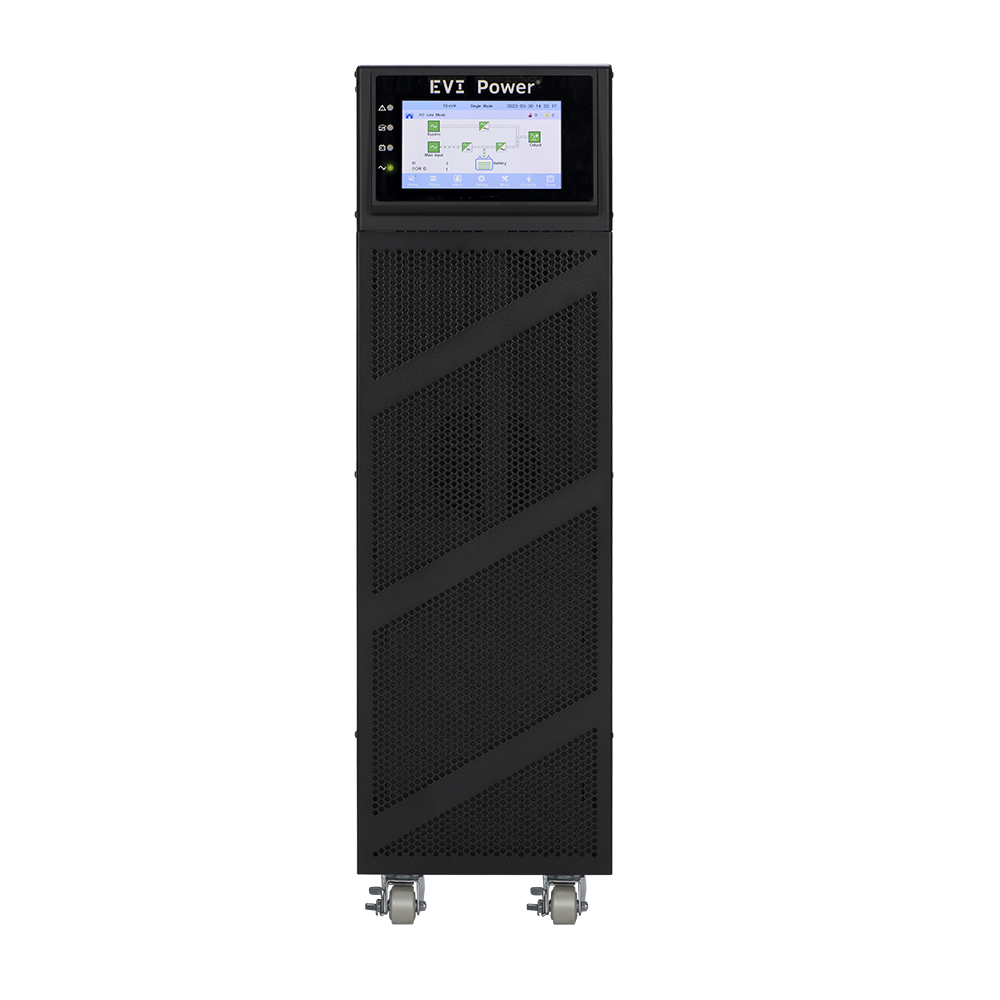

• Display: 7-inch color touch-screen LCD
• Connectivity: USB, RS232, RS485, Parallel Port, Dry Contact (Optional: SNMP/Relay cards)
• Warranty: 2-year manufacturer warranty (1 year on battery components)

Ideal For:Small to medium data centers, telecommunications infrastructure, healthcare diagnostic equipment, and financial server systems requiring continuous, reliable power protection.
